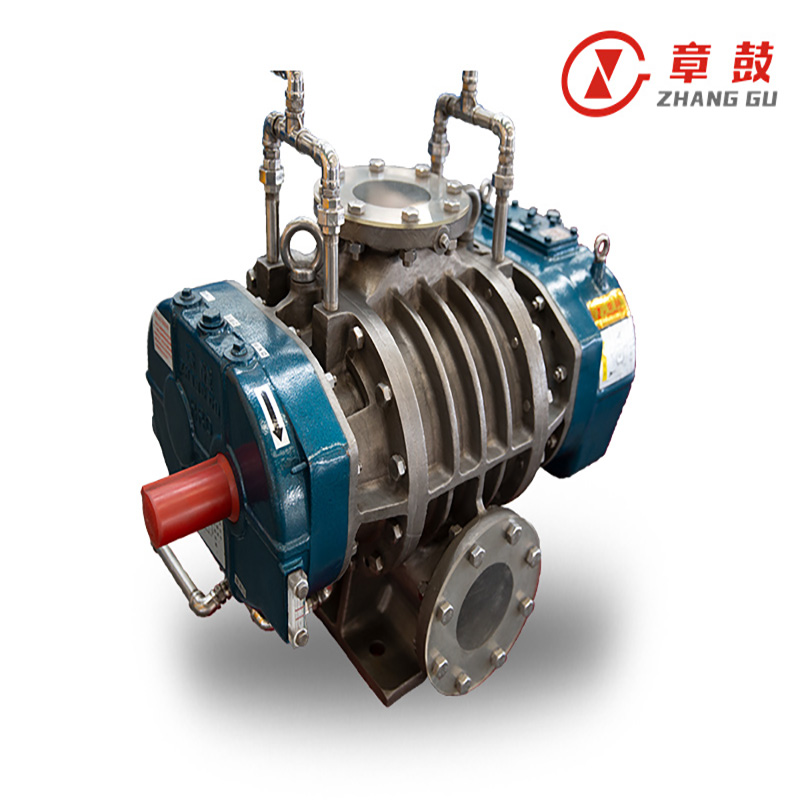

VR Series Steam Roots Blower
1.Large air volume and pressure coverage, the product has a wide range of applications, users can choose the most suitable compressor from it. Steam processing capacity 30 ~ 7400kg, steam temperature rise
10 ~ 25℃,
2.Compressor and motor can be connected by a variety of transmission modes to ensure the smoothness of transmission, simple structure and convenient maintenance.
3.The impeller adopts new line, which has good sealing and high efficiency and energy saving.
4.the product processing precision is high, operation reliability, long service life.
1. The inlet flow rate of VR series Luoze steam compression machine samples refers to the flow rate when saturated water vapor is sucked in at 8 0 ℃. If the user transports the medium state and samples.
For different conditions, please contact our.
2. We can provide various material options including carbon steel, 304,316,316L, duplex stainless steel, titanium materials, and special corrosion-resistant coatings for users to choose from.
3. Please inform us of the transport medium, inlet flow rate, inlet temperature, pressure or temperature increase when ordering. If the sample performance parameters do not meet customer requirements, please contact our company's technical department.
Department. Our company can customize special specifications of rosa steam compressors according to customer requirements.
Description:
VR series steam Roots compressor that developed by our company has the characteristics of high efficiency, energy saving and stable operation. It can be widely applied to MVR system evaporation crystallization and evaporation concentration industry.
Feature:
1.Large range of capacity and pressure rise and wide application that can be chosen conveniently by users.
Evaporation Capacity :30-7400KG, Temperature Rise: 10-25℃
2.Various transmission modes are adopted by compressor and motor that ensure the stability of the operation. Simple structure, easy maintenance.
3.Patent impeller profile to ensure reliable seal performance, high efficiency and energy saving.
4.High machining accuracy, reliable operation, long service life
5.No lubrication inside the casing, and the design structure ensures that lubricating oil and steam will not mix up.
6.Compressor shaft seal can be chosen according to user requirement. Various seal type with good effect to ensure zero leakage of conveying steam.
7. Perfect material of compressor wetted parts is available to meet user requirement according to different transfer medium.
Order Instruction:
1.The compressor can be made of carbon steel, SS304,SS316,SS316L,duplex stainless steel, titanium and special corrosion resistant coating according to user requirement.
Please share the medium, suction capacity, suction temperature, pressure rise/temperature rise. Our company can provide customized Roots Steam Compressor according to user requirement.
