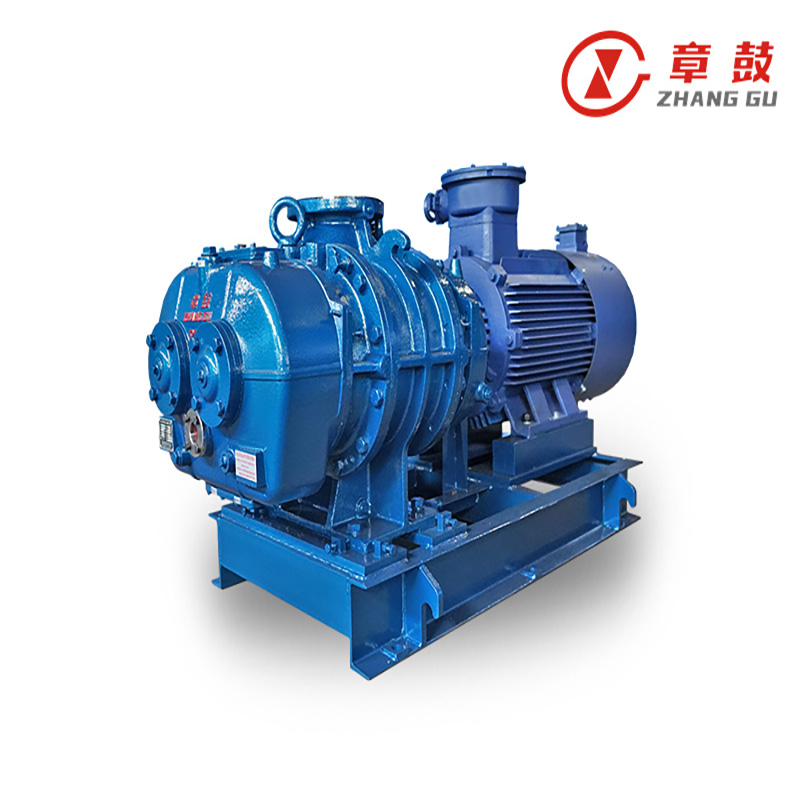

Great Rotary Blower
1. Features a large-radius involute-type impeller with an advanced and rational design, ensuring high overall efficiency.
2. Key components are machined using machining centers and CNC equipment. Gears are precision-ground lightweight alloy steel with Grade 5 accuracy, ensuring high product precision and reliable operation.
3. The oil tank incorporates innovative structures like an oil sump tray for superior heat dissipation. It can operate without cooling water even at 49kPa boost pressure, reducing operating costs.
4. The casing and end plates feature a horizontal center-split design for easy maintenance.
The ZR Series Roots Blower is a new product developed by our company, leveraging years of manufacturing expertise to meet user demand for high-flow, high-pressure blowers. This series integrates the technological essence from the RR Series and L Series blowers—both produced using imported technology—and employs specially designed impeller profiles to create a highly efficient, energy-saving Roots blower.
Product Features
1. Features large-radius involute-profile impellers for advanced, rational design and high overall efficiency.
2. Key components are machined using machining centers and CNC equipment. Gears utilize Grade 5 precision lightweight alloy steel, ensuring high product accuracy and reliable operation.
3. The oil sump employs innovative structures like oil trays for superior heat dissipation. No cooling water is required at pressures up to 49 kPa, reducing operating costs.
4. Horizontal center-split casing and end plates facilitate maintenance.
Key Technical Specifications
Flow Rate: 317.9–1258 m³/min
Pressure Boost: 9.8–98 kPa
Primary Applications
Widely used in power generation, fertilizer production, steel manufacturing, metallurgy, pressure swing adsorption (PSA), cement production, and other industries requiring high-pressure, high-flow-rate operations.
