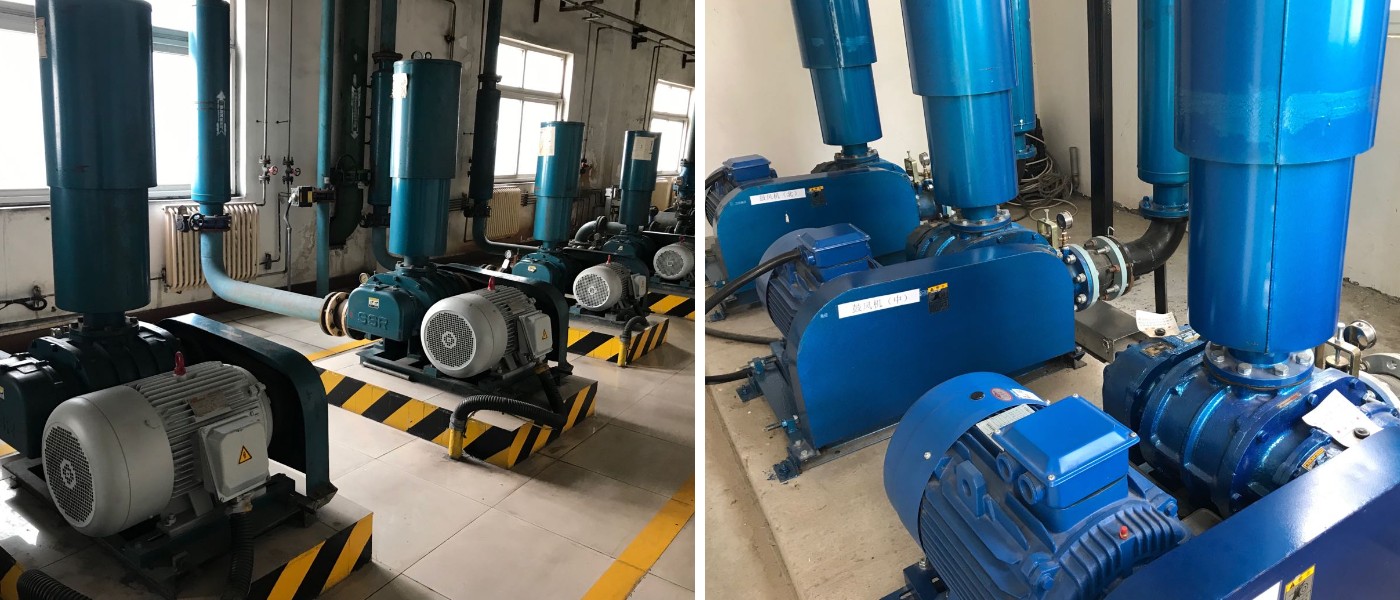

SSR Roots Blower

■ The helical construction employs the stator helical method, in which the screen lines of the casing at the suction and discharge sides are cut into a helical shape. The triangular suction and discharge ports, formed by a straight line at the rotor top, are gradually opened and closed.
As a result, the suction and discharge ports of this type are not opened or closed abruptly, which allows these blowers to operate with only limited sound and nearly free from discharge pulsations.

■ The rotors are of a three-lobe straight type, preventing mutual interference even when minor thrust-direction displacements occur—unlike the helical type. Therefore, clearance between the rotors only needs to be ensured in the profile direction, eliminating the need for excessive clearance due to thrust-direction displacements as required in helical rotor types.
For these reasons, these blowers achieve very high efficiency compared to helical rotor types of the same dimensions.
By adopting a unique rotor profile, the clearance between the rotors can be maintained constant, further improving efficiency.

■ Rotor precision is strictly controlled, and variation between blowers is almost nonexistent, as the rotors are mass-produced using precision NC machining. In addition, the rotors are dynamically balanced during the fabrication stage, making them virtually free from vibrations commonly found in conventionally unbalanced rotors.
The most advanced driving gears are adopted not only to extend service life but also to reduce noise. The gears are made from special Cr-Mo steel through hardening treatment and are manufactured to meet JIS first-class gear precision standards. Therefore, harmful disturbances from the gears are avoided.

■ The transported air remains clean and completely free of oil dust, as no oil lubrication is required inside the casing. The structural design prevents bearing oil and gear oil from entering the casing.

With the establishment of a quality management system and a manufacturing management system, the goals of parts interchangeability, reduced production cost, and rapid delivery have been achieved. An adequate quantity of blowers is kept in stock to ensure timely delivery.

Character

Apply super gears to guarantee long life running with lower noise level.
Newly designed inlet & outlet bore profile.
No oil delivery

Specification

Flow: 0.6m3～90m3/min;
Pressure: Rise: 9.8～78.4kPa.
Application:
Widely used in waste water treatment, pneumatic conveying, vacuum packing, aquaculture and etc. diverse industries.

Ordering Information:

Standard accessories: inlet silencer(with filter), pulleys,belts, belts guard, pressure relief valveassembly, base, pressure gauge, anchor bolts,discharge silencer,check valve,flexible jointOptional accessories: motor, sound enclosure, vibration isolators. etc

Company Strength:

Shandong Zhanggiu Blower Co., Ltd is one of the most important blower manufacturers in China with 50 years ofexperience in R&D and production of Roots type blower. lt has become the domestic No. 1 in production capability andmarket share of Roots type blower. lt has invested to set up two Chinese-Japanese joint ventures, one sub-companyin USA which is the first oversea organization in domestic blowers industry. Now the company has become a largescale modern producing and design enterprise with products of blowers, heavy-duty equipments, pneumatic conveyingsystems,industrial pumps and electric equipments. etc.

The SSR Series is a newly developed three-lobe Roots blower, created by a Sino-Japanese joint venture.

Product Features:

1. Equipped with high-grade drive gears, which not only extend service life but also reduce noise levels.

2. Unlike traditional blowers, the air inlet and outlet of this blower do not open or close instantaneously, resulting in extremely low operating noise and almost no air exhaust pulsation.

3. Delivers clean air output, free from any oil or dust contamination.

Main Technical Specifications:

• Air Volume: 0.6 m³/min ~ 90 m³/min

• Pressure Rise: 9.8 ~ 78.4 kPa

Main Applications:
Widely used in water treatment, pneumatic conveying, vacuum packaging, aquaculture, and other industries.
