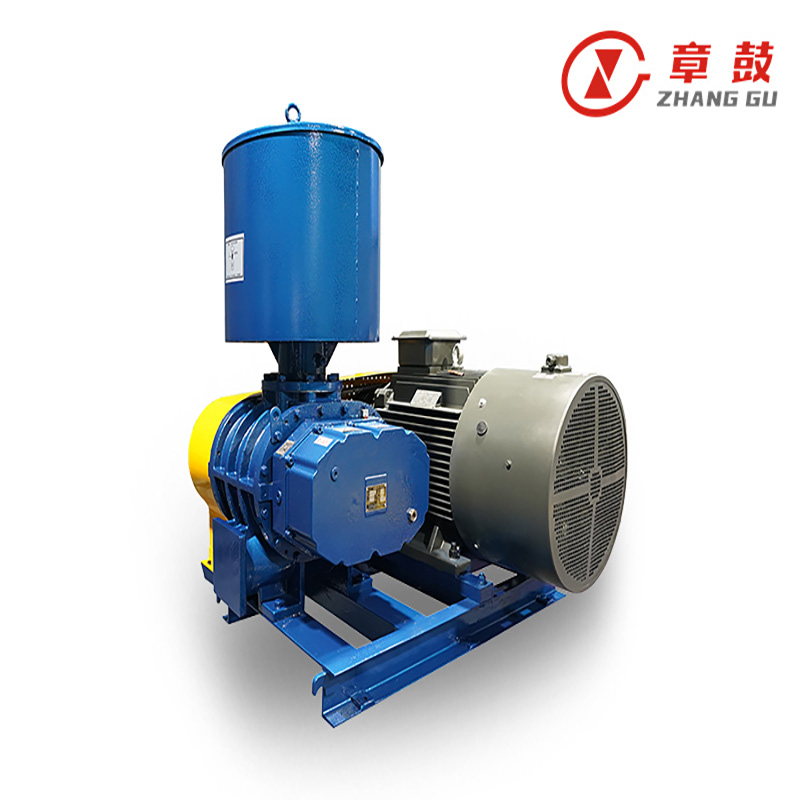

Aeration Roots Blower
High efficiency, small size, light weight, compact structure, convenient operation and maintenance
Flow sub-file encryption, extensive coverage, the user can choose the most appropriate models
Air-cooled structure, single-stage pressure is up to 78.4kPa without cooling waterImpeller with advanced structure, clover leaf, the area utilization factor
Use of precision hardened straight-tooth synchronous gears, keyless connection, positioning.smooth operation, low noise, high strength, long life
According to customer's requirements,sound enclosures are avilable,which can make the soundlevels up to 85dB(A)
Product performance:
Pressure:9.8~78.4 kPa
Flow: 0.22~59.21 m/minShaft
power: 0.18~71.59 kW
High blower speed with 4000 to 5000 rpm, high efficiency, and compact structure design.
Low noise tri-lobe rotor
Noise-reduction know-how application for casing
Integral-shaft ductile iron impellors
Dual splash lubrication
Hardened teeth face for precision helical timing gear, taper-lock shaft mounting
Versatile configuration
Piston ring air seals
Lip type viton oil seals
Air cooling, aluminum oil tank
Automatic belt tensioner and integrated discharge silencer base frame application for the blower package
Ductile cast iron pulleys are applied to meet the high speed
Start up valve is optional to realize the blower starting without load even if without bypass air release valve
Standard accessories: blower, inlet silencer(with filter), outlet silencer, puleys, belt guard, belt, pressure reliefvalve, check valve, flexible joint, pressure gauge, shock absorber, expansion bolt.(Anchorbolts for modelZG-290.ZG-300 Blower)
Optional accessories: motor, acoustic enclosure, electric control box, start up valve. etc
