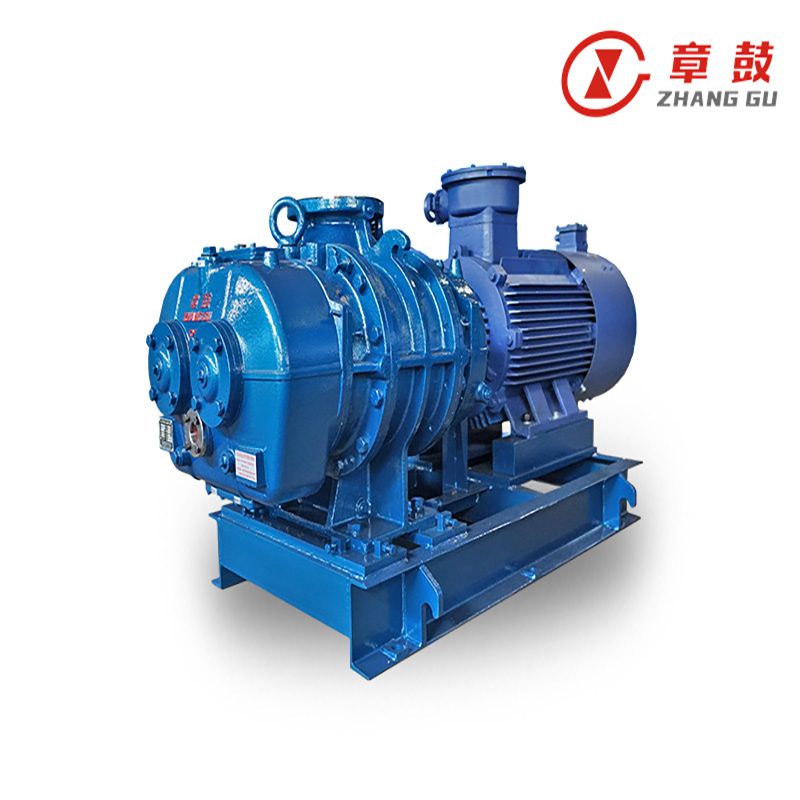

Industrial Air Blower Fan

1.Equipped with our self-developed three-lobe rotor profile, the blower offers significantly improved sealing performance compared to traditional two-lobe designs, resulting in reduced leakage and higher efficiency.

2.Low noise operation is achieved through a specially designed noise-reducing rotor profile, a housing structure optimized for sound attenuation, and high-precision manufacturing of key components. This ensures not only quiet performance but also reliable operation and extended service life.

3.The blower delivers smooth airflow with minimal pulsation, ensuring stable operation, low vibration, and reduced noise levels.

The 3H Series Three-Lobe Roots Blower is primarily used in environmental protection, pneumatic conveying, petrochemicals, aquaculture, power generation, cement, and metallurgy industries.

RR Roots type blowers/vacuum pumps are made with the technology introduced from Japan.

　　Features:

　　1、Various models including pressure type, vacuum type, dry type, wet type etc.

　　2、Small clearance position bearings made in Japan ensures the reliable rotor axial location.

　　3、Bi-lobe rotors are made in casting iron, and can be replaced completely for the high precision machining.

　　4、Dual splash lubrication

　　5、Besides of labyrinth seals, mechanical seals and packing seals are also available to deliver different gases.

Duty:

　　Single stage blowers flow:0.95～452m3/min, pressure rise: 9.8～98kPa

　　Single stage vacuum pumps flow: 0.51～452m3/min, vacuum: -9.8～-49kPa

　　Single stage wet type vacuum pumps flow: 0.57～456m3/min, vacuum: -13.3～-53.3kPa

Applications:

　　Widely used in Power, petroleum, chemical, fertilizer, steel, metallurgy, oxygen producing, cement, textile, food, paper making, dust-cleaning, aquatic farming, sewage treatment, pneumatic conveying etc. diverse industries.
