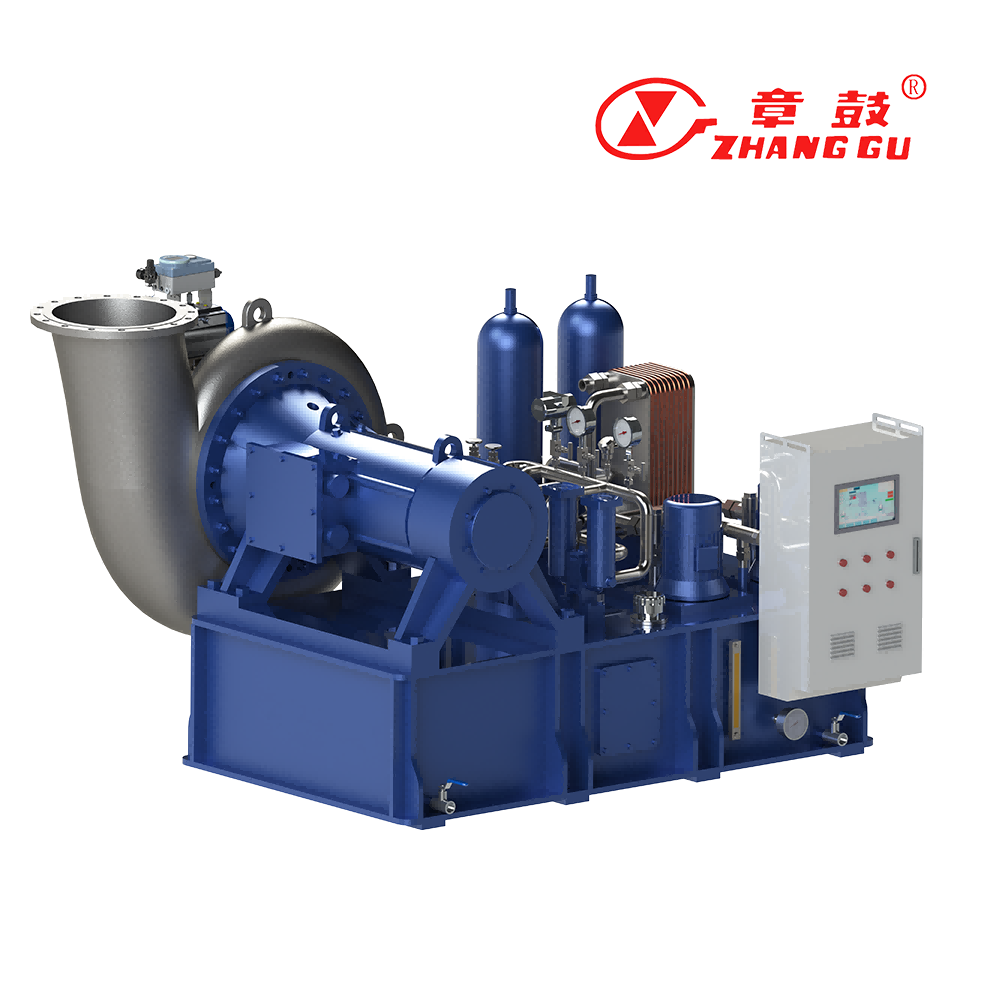

Centrifugal Blower Design
CB series High speed Turbo Blower is developed byJiangsu Zhanggu LIPORl Power Technology Co.,Ltd adoptingadvanced aero turbomachinery technology, based on theyears’accumulated experience of Shandong Zhangqiu BlowerCo..Ltd.
This series products achieve advanced technology levelboth in China and abroad on pneumatic performance andstructure design, are widely used in Waste Water Treatment,Power Plant,Petroleum,Chemical, Non-ferrous Metallurgy,Gas treatment, Solid Waste Treatment.
Advanced impeller profile curve and high efficiency
The ternary flow theory design of the impeller and theapplication of flow analysis technology forecasting performanceof blower make the Adiabatic efficiency to reach up 82%.
The flow capacity can be controlled in the wide range,and the blower can be applied to variety of working conditions.
3 Options on blower flow capacity adjustment: vFD, lGv (InletGuide vane), OGv (Outlet Guide Vane) ,wide adjusting rangeand keep high efficiency under non-rated working condition.The provided anti-surge device can prevent the surge problemeffectively.
The compact blower structure and small size.
The blowers are adopted integrated structure of assemblytype, in details, the blower body is assembled on the casing ofgear accelerating box, the lubricating, oil system distributed , themotor and gear accelerating box are installed on the commonpedestal compactly ;the pedestal doubles as a oil tank.
After strict dynamic balance, the rotor has lowvibration, high reliability and low overall noise.
The Moment of inertia of rotor is small, the startup andstop time has been decreased and the oil box with high oil leveland accumulator has been abrogated. Compare to other styleblowers with same flow capacity and pressure rise, this productenjoys low energy consumption, light weight and small size.
PMSM Direct Drive Turbo Blower
Aerospace Technology, Military Quality
Features: high technology, high standard, high performance, high reliability, high efficiency, high quality.
Product characteristic:
1. Variable frequency high-speed centrifugal blower adopts frequency conversion technology and equipped with AC permanent magnet synchronous motor.
2. Completely customer design, optimizing the energy management.
3. Best vane profile based on the aerodynamic design.
4. High technology, high efficiency, high reliability, stable operation.
5. Complete unit of equipment and system solutions.
Main application：Paper making vacuum dewatering, power plant desulfurization, sewage aeration, petrochemical sulfur recovery, steam compression, V casting vacuum system, special process gas and etc.
About us:
Shandong Zhangqiu Blower Co., Ltd is one of the most important blower manufacturers in China with 50 years of experience in R&D and production of Roots type blower, it has become the largest manufacturer and seller of Roots type blower. it has invested to set up two Chinese-Japanese joint ventures, one sub-company in USA which is the first oversea organization in domestic blowers industry. Now the company has become a large-scale modern producing and design enterprise with products of blowers, heavy-duty equipments, pneumatic conveying systems, industrial pumps and electric equipments, etc.
There are experts who are awarded to enioy special allowance from the State Council, the Province and the City government, a professional talent from Japan with doctor's degree in the company and excellent engineering researchers with the tite of "TAISHAN ACADEMICIAN" , it also keeps a good and close cooperating relationship with domestic famous universities like Tsinghua University, Xi'an Jiaotong University, Zhejiang University, Jiangsu University, Shandong University and Shandong University of science and Technology. The company has a provinciallevel R & D center with strong ability of research, design, test and inspection and positioning
a leading status in domestic machinery industry.
The company is ranked among the top 500 enterprises in Chinese Machinery industry, the top 10 innovation enterprises in the domestic blower, the top 50 enterprises in taxpaying in Shandong Province. The company is also recognized to be "The Client Satisfaction Enterprises in Blower Industry" . And “The High-Tech, Enterprise" .
