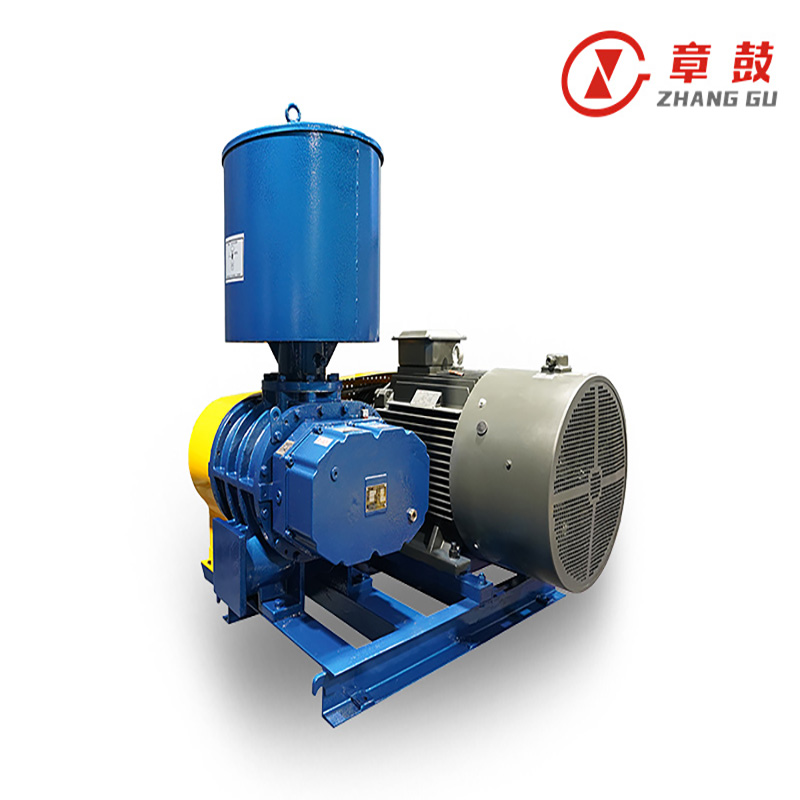

ZW Roots Blower
High Efficiency & Compact Design
ZW series tri-lobe roots blower delivers high speed up to 5170 r/min, ensuring greater efficiency, compact size, lightweight structure, and easy maintenance.
Stable Operation & Low Noise
Advanced three-lobe rotor design minimizes airflow pulsation, ensuring smooth operation, reduced vibration, and significantly lower noise levels. Precision hard-tooth gears guarantee long service life.
Durable & Reliable Performance
Equipped with aluminum alloy oil tank for superior heat dissipation, air cooling design eliminates the need for water cooling up to 58.8kPa, making it ideal for sewage treatment, aquaculture, and cement industries.
ZW Series Three-Lobe Roots type blowers, which were based on the technologyof U.S.A blowers, are the latest products of Shandong Zhangqiu Blower CO.,LTDand have company's 50-plus years of design and manufacturing experience.Zwblowers with higher capacity and lower cost, have advanced performance and structurefeatures.
Main features:
High efficiency, small size, light weight, compact structure, convenient operation and maintenanceFlow sub-file encryption, extensive coverage, the user can choose the most appropriate modelsAir-cooled structure, single-stage pressure is up to 78.4kPa without cooling waterlmpeller with advanced structure, clover leaf. the area utilization factor
Use of precision hardened straight-tooth synchronous gears, keyless connection, positioning.smooth operation, lownoise, high strength, long life
According to customer's reguirements,sound enclosures are avilable.which can make the soundlevels up to 85dB(A)
Product performance:
Pressure:
9.8~78.4 kPa
Flow:
0.22~59.21 m/min
Shaft power:
0.18~71.59 kW
Ordering information:
Standard accessories: inlet silencer(with filter), pulleys,belts, bets guard, pressure relief valveassembly, base, pressure gauge, anchor bolts,discharge silencer,check valve,flexible jointOptional accessories: motor, sound enclosure, vibration isolators, etc.
