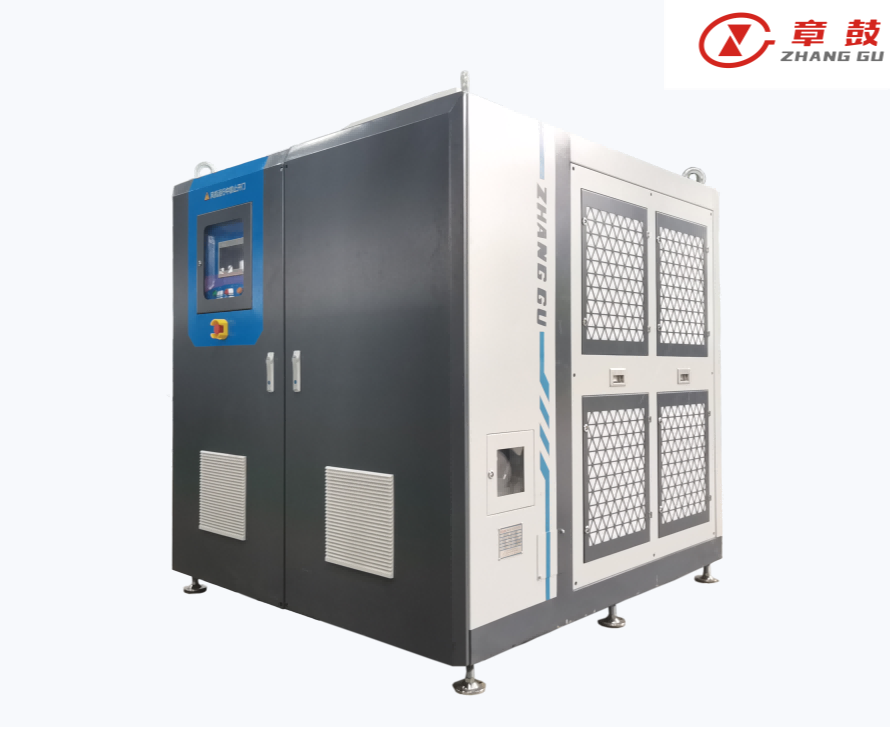

Magnetic Suspension Centrifugal Blower
The Magnetic Suspension Centrifugal Blower offers outstanding efficiency and reliability. By adopting a high-speed PMSM and ternary flow impeller, it achieves over 30% energy savings compared with Roots blowers, 20% compared with multi-stage centrifugal, and 10% compared with single-stage high-speed centrifugal blowers. Operating with low noise and zero mechanical friction, it ensures a maintenance-free service life. Built-in intelligent monitoring with displacement sensors and advanced magnetic suspension bearing control enables precise, stable, and efficient operation, making it an ideal choice for modern, energy-saving, and eco-friendly applications.
Magnetic Suspension Centrifugal Blower is a product of high efficiency,energy saving andenvironment-friendly that is directly mounted by high-speed PMSM and ternary flowcentrifugal impeller. The shaft vibration is timely supervised by build-in displacement sensorThe collected data will be input to the Magnetic Suspension Bearing Controller for computation to generate the control current. This current will be input to the windings of MagneticSuspension Bearing to qenerate the maqnetic force for suspension.
PMSM generates frequency controllable current via inverter,this current will be input to themotor stator to generate rotaion magnetic field to drive the shaft rotating at high speed.
The impeller driven by high-speed rotating shaft will take the air from volute casing inlet,andwill be forced by impeller and volute casing quidance to generate flow velocity andpressure.Then will be discharged from volute casing outlet to complete the blowing process.
Energy saving and High efficiency:
Ternary flow impeller is directly coupled with high-speedPMSM;
Save more than 30% energy than Roots Blower;Save more than 20% energy than Multi-stage CentrifugalBlower;
Save more than 10% energy than Single Stage High SpeedCentrifugal Blower.
Low Noise:
With the self-balancing technology, the vibration level ofMagnetic bearing is lower than traditional bearings,andthere is no friction, Adopting the active vibration dampingdesign,the blower can operate smoothly of less vibration,and the noise of the blower is around 80dB(A).
Maintenance Free:
Integrated design,skid mounted structure,convenient installation,one key to start and stop the blower.No need formechanical maintenance during daily operation,only to replacethe filter.
Intelligent Control:
With PLC+GPRS/3G/4G, we can real time monitor the operationstatus of the Blower and control flow,air pressure and speed byintelligently or manually mode.n case of failure, it can also berepaired and debugged remotely.
Magnetic Suspension Centrifugal Blower is a product of high efficiency, energy saving and environment-friendly that is directly mounted by high-speed PMSM and ternary flow centrifugal impeller. The shaft vibration is timely supervised by build-in displacement sensor. The collected data will be input to the Magnetic Suspension Bearing Controller for computation to generate the control current. This current will be input to the windings of Magnetic Suspension Bearing to generate the magnetic force for suspension.
Performance Features
1.Energy Saving:
Save more than 30% energy than Roots Blower
Save more than 20% energy than Multi-stage Centrifugal Blower
Save more than 10% energy than Single Stage High Speed Centrifugal Blower
2.Low Noise
3.Maintenance Free
4.Intelligent Control
Performance Data
Pressure Rise: 40-150 kPa
Inlet Flow: 30-391 m3/min
