Side Blower

The most prominent advantage of skid-mounted fans is their fast, hassle-free installation. All critical components—including the fan unit, motor, drive system, control panel, and auxiliary parts (such as filters or silencers)—are pre-assembled, wired, and tested at the factory before being mounted on a single, rigid skid (usually made of steel for durability). This eliminates the need for on-site component alignment, wiring, or complex assembly, which typically takes days or weeks for traditional fans. Instead, skid-mounted fans only require delivery to the site, connection to power and airflow ducts, and basic calibration—often completing installation in a few hours to one day. This is especially valuable for time-sensitive projects (e.g., emergency factory ventilation, temporary construction sites) or locations with limited on-site labor/resources.

Skid-mounted fans feature a compact, integrated design that optimizes space usage. By consolidating all components onto a single skid, they avoid the scattered layout of traditional fan systems, reducing the overall footprint by 30%–50% compared to separate component setups. This makes them ideal for spaces with limited room, such as narrow industrial workshops, rooftop installations, or indoor commercial areas. Additionally, their skid base is designed for easy mobility: many models include forklift pockets or lifting lugs, allowing quick relocation using standard equipment. For example, a skid-mounted fan used for temporary warehouse cooling can be easily moved to another facility once the project ends, maximizing asset utilization.

The streamlined installation process of skid-mounted fans directly translates to cost savings. With minimal on-site work required, labor costs for assembly, wiring, and testing are reduced by 40%–60% compared to traditional fans. There is also less need for specialized technicians (e.g., electricians for on-site wiring or mechanical engineers for component alignment), further cutting labor expenses. Additionally, the pre-tested factory assembly minimizes the risk of on-site installation errors (such as misaligned impellers or faulty wiring), which often lead to costly rework or delays. For businesses, this means lower upfront project costs and faster time-to-operation, accelerating return on investment.

Skid-mounted fans offer high flexibility to meet specific application requirements. Manufacturers can customize components based on user needs—such as adding high-efficiency motors, corrosion-resistant materials (for harsh environments like coastal areas or chemical plants), soundproofing layers (for noise-sensitive spaces), or advanced control systems (e.g., remote monitoring, variable frequency drives). They also support scalability: multiple skid-mounted fans can be easily connected in parallel or series to increase airflow or pressure, adapting to growing facility needs (e.g., expanding a factory’s ventilation system). This customization and scalability make them suitable for a wide range of scenarios, from small-scale commercial ventilation to large industrial process cooling.

1, Thorough Development and Design for the best energy saving!

Comparison with SSR Series: Saving more than 30% as maximum, 10% as average in each model.

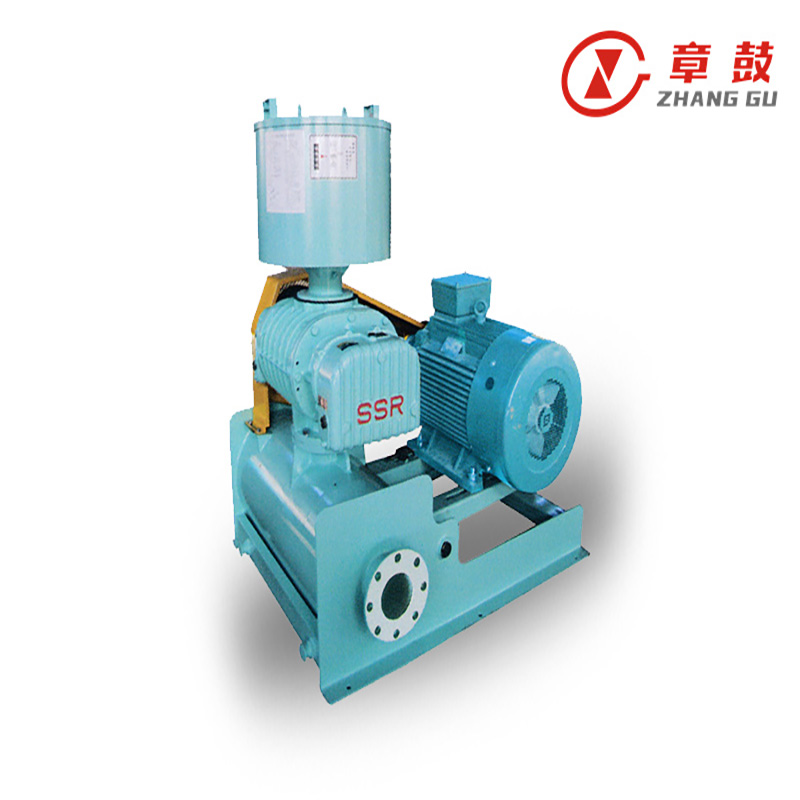

Rotary blower transfer the gas into the cavities between casing and impeller. There is some backflow of gas from discharge to suction end because of pressure difference. In K model, to prevent this backflow, the clearance between casing and impeller is minimized to secure the best volumetric efficiency. And the widest cavity formed by specially designed impeller, high rotating speed, and energy-saving V-belt achieve the better energy saving.

 2, Compact Design

Specially designed impeller and high rotating speed of K achieve more than 120% of maximum capacity compared with our previous model (SSR with same bore size).

Least footprint with newly designed suction silencer (shortened its height) to less the blower packing size.

3, Designed for Lower Noise and Vibration!

Upgrade designed 3 lobe impeller, and exquisite design mechanical performance.

Newly designed casing structure will reduce the pulsation when compressing gas and newly designed suction silencer could reduce the pneumatic noise. The special designed blower shaft structure will further lower its noise and vibration.

 4, Compatibility for Replacement and Easy Maintenance

In case of the same bore as previous model SSR, the foundation works and modification of piping will not be required for the replacement from SSR to K model.

Bearings at driving end are lubricated by grease. No maintenance work is required for them.

Also, for easy replacement of the air filter, lifting handle is provided on filter cover.
