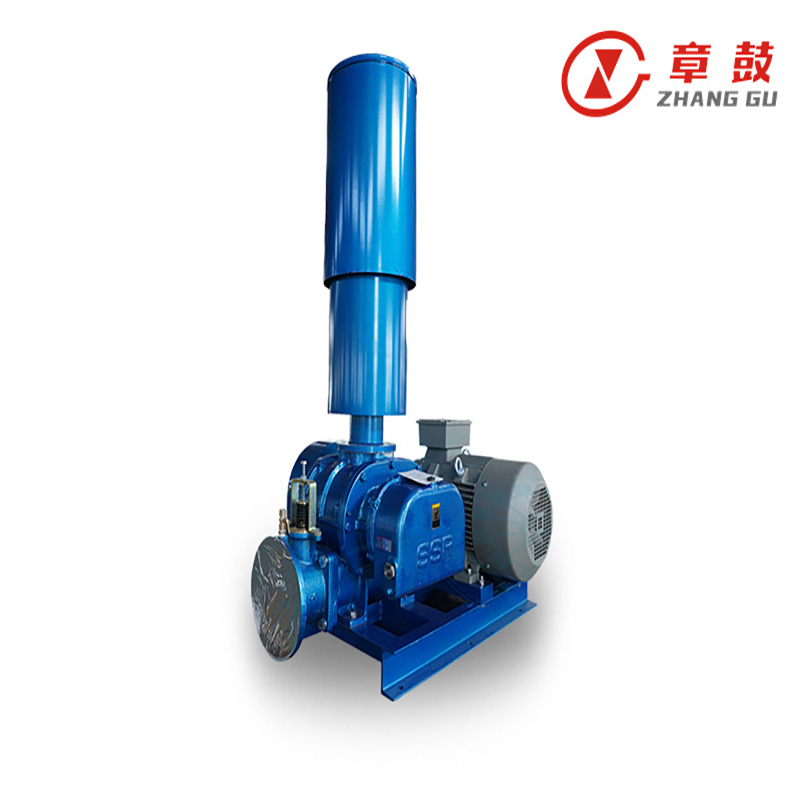

High Quality Roots Blower
Low Noise & Vibration: Helical port design minimizes sound and pulsation.
High Efficiency: Unique rotor profile ensures constant clearance for optimal performance.
Precision Engineering: CNC-machined, balanced rotors guarantee smooth operation and reliability.
Oil-Free Air Delivery: Sealed design prevents oil contamination, ensuring clean air output.
ROTARY BLOWERS FEATURES：
The helical construction uses the stator helical methodthat the screen lines of casing at the suction and dischargesides are cut to a helical shape,and the triangle suctionand discharge port formed by a straight line of the rotortop is to be opened and closed gradually.Therefore,the suction and discharge ports of this typeis not opened or closed at moments,which makes theseblowers have an only limited operation sound and almostfree from pulsations from discharge.
The rotors are three-lobe straight type, so that therotors can notinterfere with each other,resulting fromminor displacements in the thrust direction as in thehelical type. Therefore,the clearance between the rotorsshould be assured in the profile direction only and thusthere is no necessity of an excessive clearance on accountof displacements in the thrust direction as in case of therotor helical type.From such reasons,these blowers have avery high efficiency,in comparison with the rotor helicaltype of same dimensions.
By adoption of an unique profile of rotor,the clearancebetween the rotors can be held to be constant,whichmakes the efficiency even higher.
The precision of rotors is fully controlled and variationof precision between blowersis almost nil because therotors are produced under the mass production control byutilizing a prenision NC maching.In addition, the rotorsare dynamically balanced in the fabrication stage already,sothat these rotors are almost free from vibrations as in thecase of conventional rotors which are still unbalanced.
The advancedest driving gears are adopted not only toextend the use life but also to make noise lower.The gearsare made in special CrMo steel by hardening treatmentand are made according with gear precision of JIS first-class.Therefore,the harmful disturbances to products fromgears are avoided.
The transported air is clean and is any oil-dust free oillubrication is not needed in casing and the structure designprerent the bearing oil and gear oil from entering thecasing
With the establishment of quality management systemand manufacture management system,the aims of partsexchanging,less production cost and rapid delivery arerealized.The blowers of right quantity are keeped in stockto make delivery in time.
The SSR Series is a newly developed three-lobe Roots blower, created by a Sino-Japanese joint venture.
Product Features:
Equipped with high-grade drive gears, which not only extend service life but also reduce noise levels.
Unlike traditional blowers, the air inlet and outlet of this blower do not open or close instantaneously, resulting in extremely low operating noise and almost no air exhaust pulsation.
Delivers clean air output, free from any oil or dust contamination.
Main Technical Specifications:
Air Volume: 0.6 m³/min ~ 90 m³/min
Pressure Rise: 9.8 ~ 78.4 kPa
Main Applications:
Widely used in water treatment, pneumatic conveying, vacuum packaging, aquaculture, and other industries.
