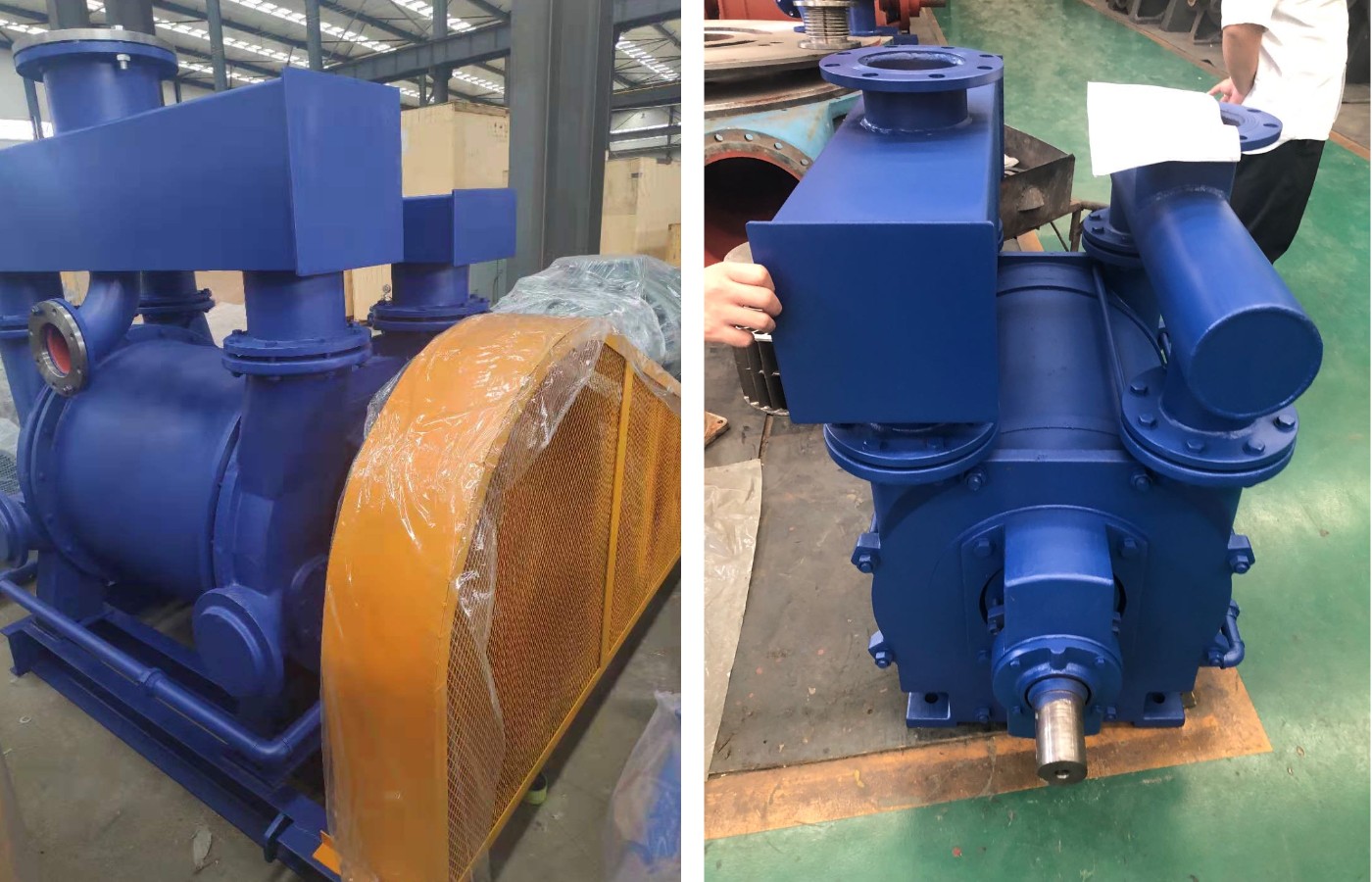

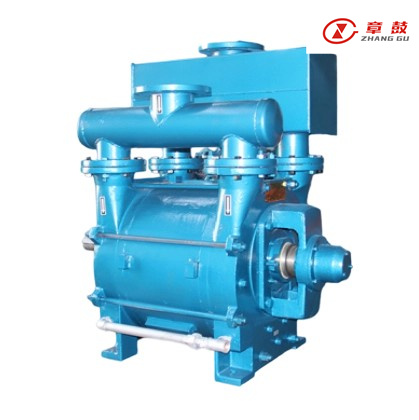

LRA(C) series Liquid Ring Vacuum Pump
1.All bearings are foreign brand to guarantee the precise positioning and stable running.
2.Main parts are machined by CNC machining centre
3.Impeller material is Ductile Cast Iron or welded steel plate to guarantee the stable running under the rigorous condition and longer life.
4.The shaft bush is made by stainless steel to get longer lifetime than common material.
Max vacuum degree: 160hpa or 33hPa
Flow Capacity：5.8～646m3/min
Shaft Power ：8.4～808kW
Product Description:
LRA(C) series Liquid Ring Vacuum Pump is developed and made by us of advanced technology which is power saving and suitable for long term continuous running.
It is single stage and single-acting structure has advantages of simple structure, convenient maintenance, reliable running, high efficiency, power saving and higher vacuum degree which is much better than SK,2SK, SZ series products on domestic market. LRA(C) is the new generation product to replace SK,2SK, SZ series ideally.
Main characteristics:
1.High precise taper pulleys (belt drive models) and foreign brand V-belts are used to guarantee the stable running and longer life. And it is easily to dismantle or reassembly.
2.High-intensity flexible couplings (direct drive models) are used to guarantee the stable running and longer life. The coupling element is made by rubber.
3.Packing gland seal and Mechanical seal are available for diverse applications.
4.The unique design of upper separator is space-saving and lower the noise level efficiently.
5.There is inspection holes at sides of pump cover of LRC type Liquid Ring Vacuum Pump to check its clearance, corrosion condition and sediment condition.
6.Provided all flanges at top and sides of LRC type Liquid Ring Vacuum Pump with the same bore size for diverse type installations on site.
Performance Range:
Max vacuum degree: 160hpa or 33hPa
Flow Capacity：5.8～646m3/min
Shaft Power ：8.4～808kW
Packaging and Shipping
About us
Shandong Zhangqiu Blower Co.,Ltd (abbreviated as "ZhangGu”,Stock Code:002598) is one of the most important and trustworthy manufacturers and sellers in China with around 50 years of experience in R 8 D AND production. ZhangGu has experts including the gainers of special allowance from the state council,province, and City level, the researchers with tile of "TAISHAN ACADEMICIAN", the foreign talent with Japanese Doctor's degree.ZhangGu also keeps close cooperation with domestic famous universities such as Tsinghua University,Xi'an Jiaotong University,Zhejiang University, Jiangsu University,Shandong University, and Shandong University of Science and Technology.ZhangGu has a provincial level RSD center with leading ability of research, design, test and inspection in domestic machinery industry.
